Delving into the internal mechanics of an espresso machine can be a rewarding endeavor for any dedicated home barista. Beyond the polished chrome and familiar controls lies a network of wires, switches, and components that dictate every function. For those interested in modification, repair, or simply a deeper understanding of their equipment, the wiring diagram is the most critical document available. It is a schematic map of the machine’s electrical soul. This article provides a foundational guide to interpreting these diagrams, enabling users to diagnose issues, plan upgrades, and work on their machines with confidence and precision.
The anatomy of a wiring diagram
At first glance, an espresso machine wiring diagram can appear as an indecipherable web of lines and symbols. However, it follows a logical system. The diagram illustrates how electrical components are connected, not their physical location within the machine. The primary goal is to show the path of electricity from the power source to each component. Key elements to identify include the main power switch, heating element, pump, solenoids, and control board (if applicable). Wires are represented by lines, and where lines cross, a dot typically indicates a connection, while a simple crossover without a dot means they are not connected.
Decoding common electrical symbols
To read a diagram, you must first learn its language. Symbols are standardized representations of electrical components. While slight variations exist, a core set is used almost universally in espresso machine schematics. Understanding these symbols is the first step toward tracing circuits and diagnosing functionality. Below are some of the most common symbols you will encounter.
| Symbol | Component Name | Function in the Machine |
|---|---|---|
| –(▯)– | Resistor / Heating Element | Generates heat for the boiler when current passes through it. |
| –(○)– | Pump Motor | Drives the pump to create water pressure for extraction. |
| –o/ o– | Switch | Opens or closes a circuit to control a function (e.g., power, brew). |
| –(⌕)– | Solenoid Valve | An electronically controlled valve that opens or closes to direct water flow. |
| ⏚ | Ground | Provides a safe path for electricity to dissipate in case of a fault. |
Familiarizing yourself with these and other component symbols, like those for capacitors, thermostats, and pressurestats, will transform the diagram from a confusing illustration into a practical tool.
Tracing a primary circuit

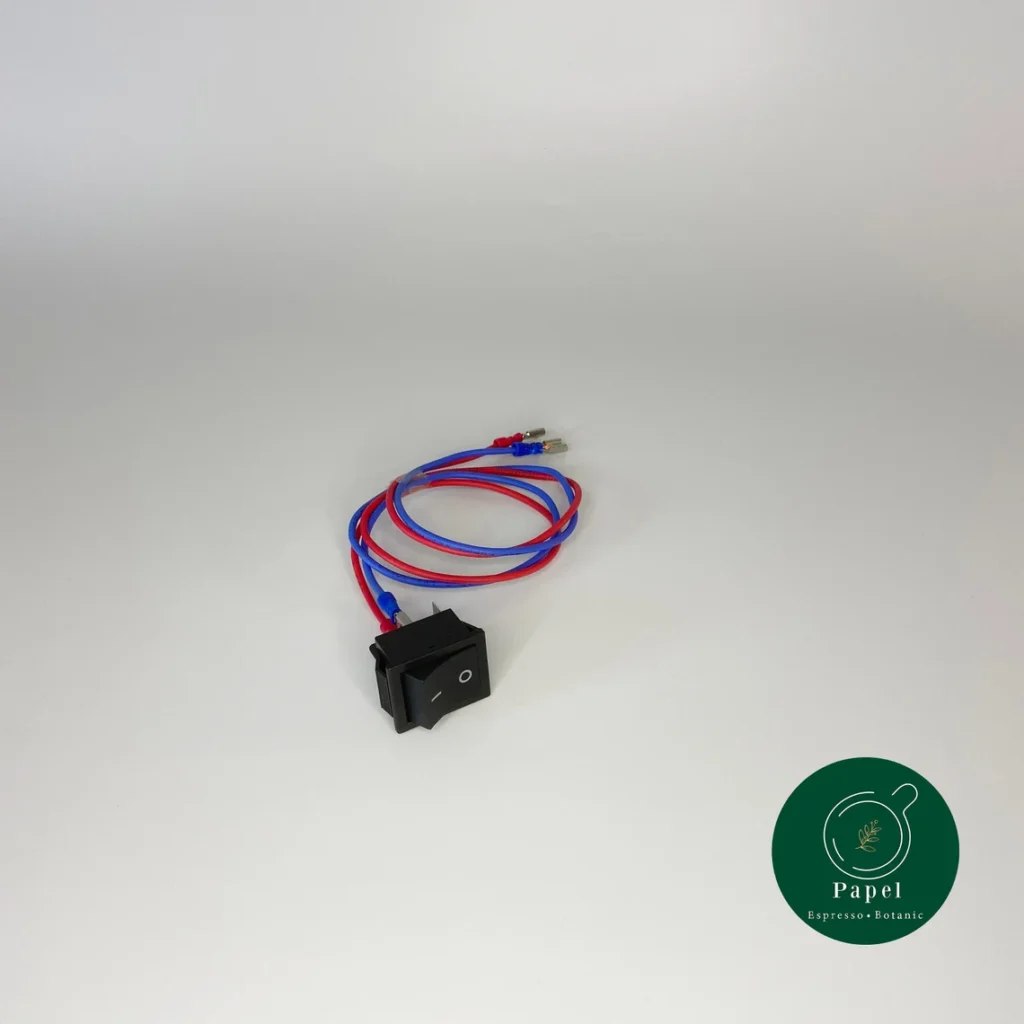

With an understanding of the symbols, you can begin to trace circuits. A good starting point is the main power circuit. Begin at the power cord and follow the lines representing the live (hot) and neutral wires. These will typically lead to the main power switch. From the switch, the circuit branches out to power the other components. For example, in a simple brew circuit, the path might go from the power switch to a brew switch. When the brew switch is activated, it closes the circuit, sending power simultaneously to the pump and a three-way solenoid valve near the grouphead. Following this logical flow helps you understand how different functions are initiated and controlled, which is invaluable for troubleshooting a machine that fails to heat, pump, or dispense water.
Safety protocols and practical application
Working with electrical components, especially in an environment that also involves water, requires strict adherence to safety protocols. Before ever opening your machine, always disconnect it from the power source. Simply turning it off is not sufficient. Use a multimeter to verify that there is no residual charge in any capacitors and to test for continuity when diagnosing faults. A wiring diagram is essential for this, as it tells you where to place your probes to test a specific switch or component. When planning a modification, such as adding a pressure transducer for flow profiling, the diagram shows you where you can safely tap into power and how to integrate the new component without disrupting existing circuits.
Mastering the skill of reading a wiring diagram is a significant step for any espresso machine enthusiast. It demystifies the inner workings of the machine, empowering you to perform repairs and modifications with a clear understanding of the electrical systems at play. This knowledge transforms you from a user into a caretaker of your equipment, ensuring its longevity and performance. By patiently tracing circuits and respecting electrical safety, you can diagnose issues and implement upgrades effectively. For those who pursue this level of technical understanding, relevant tools and components for such projects can often be found at specialized retailers like papelespresso.com.
Safety first: Essential electrical principles
Before ever opening your machine’s casing, you must internalize the fundamentals of electrical safety. Espresso machines operate on household AC voltage, which is dangerous and can be lethal. The first and most important rule is to always unplug the machine from the wall outlet before beginning any work. Do not rely on the power switch alone. After unplugging it, press the power button to discharge any stored energy in the capacitors. For an added layer of safety, use a multimeter to verify that no voltage is present at the power terminals inside the machine. Understanding the three main wires is also crucial: live (carries the current), neutral (completes the circuit), and ground (a safety wire to prevent electric shock). Never disconnect the ground wire.
Practical application: Planning a PID controller installation
Let’s apply this knowledge to a common modification: installing a PID controller to manage brew temperature. The goal of a PID is to replace the machine’s mechanical thermostat or pressurestat for more precise control over the heating element. To do this, you first need the wiring diagram to identify the two wires leading to the existing thermostat that controls the heating element. The PID itself does not handle high voltage directly; it uses a Solid State Relay (SSR) to act as a heavy-duty switch.
Using the diagram, you would disconnect the wires from the old thermostat. These wires are then connected to the output terminals of the SSR. The PID controller is then wired to the low-voltage input terminals of the SSR. The PID gets its own power source (often tapped from the main power switch) and receives temperature information from a new thermocouple you install on the boiler. By reading the diagram, you can confidently and correctly interrupt the heating circuit and insert the new components, ensuring the mod works as intended.
